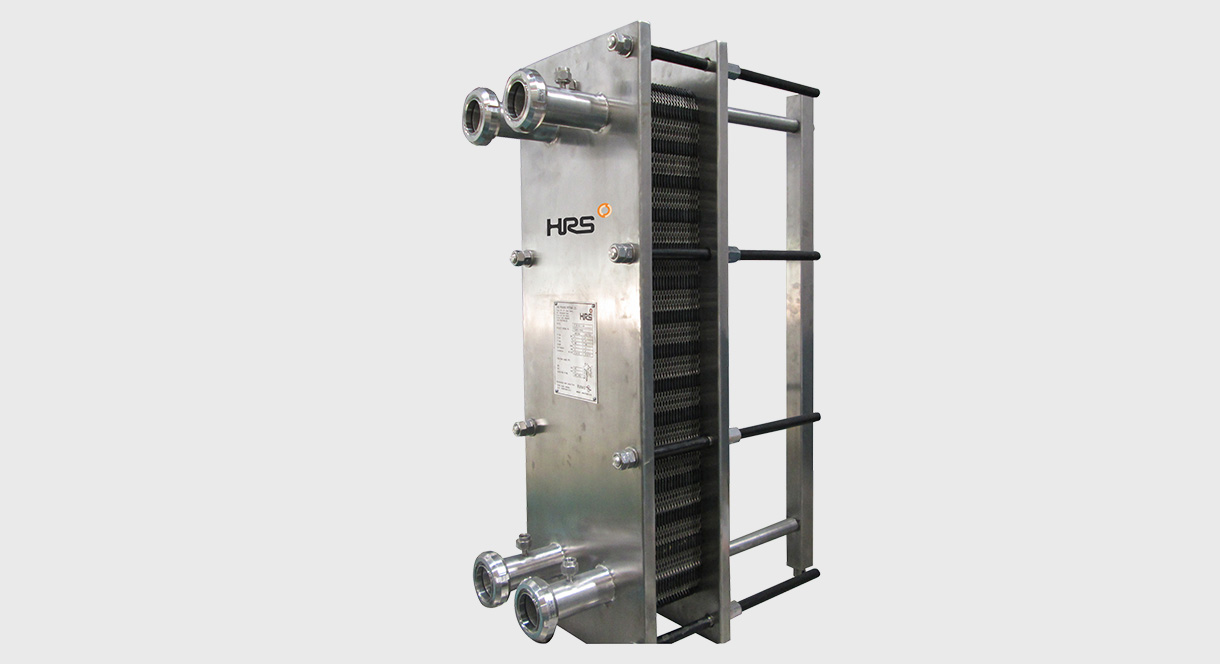

HRS FUNKE Plate Heat Exchangers Cladded
HRS Process Systems Ltd. have acquired exclusive rights by the way of license manufacturing agreement for design, manufacture, supply and service of Plate Heat Exchangers, with FUNKE Waermaustauscher GmbH!
1000+
Product Supplied
5000+
Customer References
HRS Process Systems Ltd. have acquired exclusive rights by the way of license manufacturing agreement for design, manufacture, supply and service of Plate Heat Exchangers, with FUNKE Waermaustauscher GmbH!
HRS Process Systems Ltd. have acquired exclusive rights by the way of license manufacturing agreement for design, manufacture, supply and service of Plate Heat Exchangers, with FUNKE Waermaustauscher GmbH!
Product Information
HRS FUNKE Plate Heat Exchangers are also used for specialized applications in the food and dairy industry.
- Well-researched in-house design
- Variations in plate embossing for highest efficiency
- Available in a range of SS, exotic materials to suit the process needs
- Multi section units consisting two or more plate packs separated by
- Intermediate plate or C-Plates
- Reduction in operational downtime due to glueless clip type gaskets
- Secured seal with number of two-pronged clips that slide beneath the
- Plate to hold the gasket
- Avoid cross contamination of two fluids by double seal arrangement Technical advancement of FUNKE Plate & Gasket
- Very high heat transfer rates due to thermodynamically optimized design
- Specially embossed entry fields for an optimum distribution of media (1)
- Gaskets fastened by “Clip-system” for easy maintenance
- Gaskets have a special ribbed surface, enabling more exact centering and stabilization of the entire plate pack (2)
- Double gasket with leakage groove between two media, preventing mixing of the media (3)
- Special plate profile at the edges, reinforcing the plate pack and ensuring high pressure resistance of the gasket during operation (4)
- Low investment, operation and maintenance costs
- Highly efficient heat transfer (K- values on average 3-5 times higher than in case of bare-tube heat exchangers)
- Use of smallest temperature difference
- Up to 75% less space required
- Self-cleaning effect due to highly turbulent flow behavior
- Future additional capacity is possible by fitting extra heat transfer plates
- Double gasket with leak groove gives high safety with regards to media mixing
- Easy to open/clean
- Low operating weight/low liquid content
- Ideal for Heating, Cooling, Chilling, Pasteurisation, Sterilisation
- Heating, cooling, condensing in process technology as well as refrigeration engineering, for instance
- Cooling of lubricating-oil
- District heat transfer stations
- Hot-water/process water
- Heating engineering (solar heating central heating, underfloor heating)
- Vaporiser / condenser in refrigeration plant
HRS FUNKE PHE’s are used across process industries for a various applications designed with MOC compatible, Our PHE’s are efficiently suited to a range of industries.
In chemical, pharmaceutical, mechanical engineering, on and off shore sector, power, ship building, compressors, piston and turbo machines, steel , surface treatment, automotive, paper and pulp, HVAC, extraction plants, HRS FUNKE PHE are used for heating and cooling of water, various type of oils, suspensions, infusion solutions, chemicals, acids etc.
In food and milk processing sector, as range of heating, cooling, pasteurization, heat recovery to milk and juices.
Spares and Support Services
Our wide sales and service reach ensures quick availability of spares, systems maintenance and overhauling services enables to fulfil customer requirements in the thermal processing process industry.
Opening Of Plate Heat Exchanger
Cleaning Of Plate Heat Exchanger
Replacement Of Plates and Gaskets
Reassembly
Hydro-testing
Checking Of Defect
Availability of Genuine FUNKE Spares
FAQ’s
We firmly believe the success of our company and our future depends on the knowledge, talent, strength and dedication of our employees. We are proud of the diverse team. To fulfil the ambitious growth plans, we are looking forward to expanding the current size by offering the following positions:
How to clean plate type heat exchanger?
Necessary maintenance intervals of plate type heat exchanger depending upon diversity of media used. Soft deposits on plates may be removed with circulating hot fresh water and a soft brush directly when the plate type heat exchanger is opened. To remove more stubborn deposits a high pressure clear can also be used. Care should be taken to ensure the surface of SS plates are not be damaged by cleaning. Therefore, abrasive cleaning or polishing agents and metal brushes etc should not be used.
What is a plate heat exchanger used for?
PHE’s are used across process industries for various applications designed with compatible materials. They find use in chemical, pharmaceutical, mechanical engineering, on and offshore sector, power, shipbuilding, oil, compressors, piston and turbomachines, steel, surface treatment, automotive, paper and pulp, HVAC, extraction plants, PHE is used for heating and cooling of water, various type of oils, suspensions, infusion solutions, chemicals, acids etc. In food and milk processing sector, a range of heating, cooling, pasteurization, heat recovery to milk and juices. In key processes in these sectors, PHEs are used for heating, cooling, chilling, pasteurization, sterilization, condensation, heating engineering (solar heating central heating, underfloor heating) and also as vaporizer/condenser in the refrigeration plant.
What is the timeline we get genuine spares replaced?
Generally, genuine spears are available in stock hence they can be made available.
Does provide spares and service of any plate heat exchanger?
Yes, provide spares for any plate heat exchangers as well as service for replacing and spares with additional costs as applicable.
